Modular LED aluminium profile system designed
for continuous lighting systems with different shapes
and individual luminaires

Medium power version:
27W | 2200lm | 1000mm lenght | luminaire

High power version:
43W | 3750lm | 1000mm lenght | luminaire

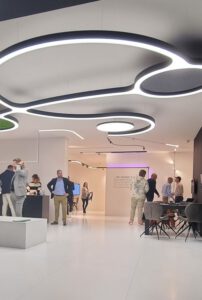

Many different junctions and connectors to create any
lighting structures

High performace opal diffuser

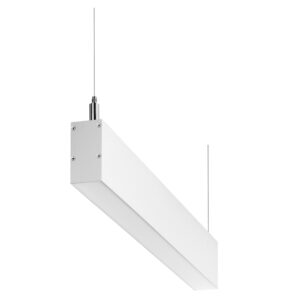

Surface mounted or suspended

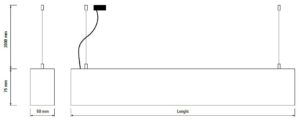

Height-adjustable cord suspension with transparent power
supply cable and celing base for suspended version
CCT= 3000K | 3500K | 4000K | other on request
CRI(Ra) > 80 as standard | CRI(Ra)>90 on request
MacAdam 3
5 years guarantee
220-240V 50/60 Hz Power supply
ON/OFF | DALI | CASAMBI | BLL | TUNABLE WHITE
Anodized/White/Black other colours on request
ca. 3,5kg | 1000mm

Typy

Type*	CRI+CCT*	Reflector	Dimming	Colour
medium power 27W | 2200lm | 1000mm	830 835 840		ON/OFF DALI CASAMBI BLL TUNABLE WHITE
LTS 309 1/14 LED		PM		ANODIZED ALUMINIUM
LTS 309 1/20 LED				WHITE
LTS 309 1/27 LED				BLACK
LTS 309 1/33 LED
LTS 309 1/40 LED
LTS 309 1/47 LED
LTS 309 1/53 LED
LTS 309 1/60LED
LTS 309 1/66 LED
high power 43W | 3750lm | 1000mm
LTS 309 1/22 LED	830	PM	ON/OFF	ANODIZED ALUMINIUM
LTS 309 1/33 LED	835		DALI	WHITE
LTS 309 1/43 LED	840		CASAMBI	BLACK
LTS 309 1/54 LED			BLL
LTS 309 1/65 LED			TUNABLE WHITE
LTS 309 1/75 LED
LTS 309 1/86 LED
LTS 309 1/97 LED
LTS 309 1/107 LED

* – other versions also possible
Order example: LTS 309 1/23 LED 830 ON/OFF WHITE

Specyfikacja techniczna

*Based on CCT=3000K CRI(Ra)>80

Power, Luminous Flux and CCT depending on customer need; current detail technical data on website https://www.sentinel.pl
Power & Luminous flux tolerance +/- 10%
Driverless versions on request
